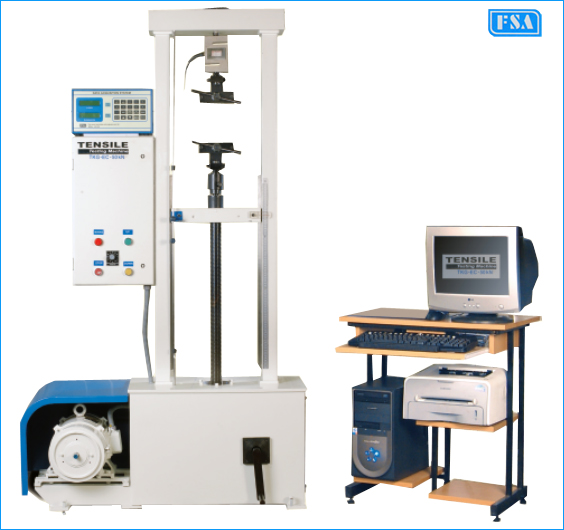

We are Manufacturer, Supplier, Exporter of Electronic, Computerised Tensile Testing Machines and our set up is situated in Sangli, Maharashtra, India.
• Latest Windows based, Users friendly, Accurate, Menu driven software.
• Fully automatic, on screen calculations based on the delivered data.
• Automatic Data capture, storage & graphic display.
• Recording, storage & retrieval of results & details.
• Build in facility for printing of test results and the graph.
• Load measurement by load cell.
• Over Load & Over travel safety.
• On line display of Load, Elongation & Graph.
• Tare load & reset elongation facilities available.
• Selectable units like N, kN, kgf, lbf, inch, mm, etc.
• Fully automatic on screen calculations like UTS, YS, Proof stress, etc.
• Electronic Extensometer (Optional) is available for proof stress evaluation.
• It is possible to use a number of load cells, say two or three, to cover much wider range of load, to suit the
application. Cost of one load cell is included in the price, but additional load cell will be at extra cost.
• Standard load resolution is with 10,000 counts. Finer resolution (Optional) with 20,000 counts can also be offered at
extra cost. Standard displacement resolution is 0.1 mm.
• Types of tests, testing materials, grips, attachments, fixtures, straining speed as like Analogue version, Model : TKG.
• Various Models – Maximum Capacity from 200 N to 50 kN.
• Loading accuracy well within ±1%, conforms to IS:1828 / BS:1610.
MAX. CAPACITY | MODEL - TKG-E / TKG-EC | MODEL - TKG-E / TKG-EC | MODEL - TKG-E / TKG-EC | |||||
200 N | 500 N | 1000 N | 2500 N | 5000 N | 10 kN | 25 kN | 50 kN | |
Measuring Ranges | 0-200 N | 0-500 N | 0-1000 N | 0-2500 N | 0-5000 N | 0-10 kN | 0-25 kN | 0-50 kN |
Ranges Least Counts | 0.02 N | 0.05 N | 0.1 N |
0.25 N | 0.5 N | 1 N | 2.5 N | 5 N |
Elongation Scale L.C | 1 mm | 1 mm | 1 mm | |||||
Grip Speration Minimum - Maximum | 25 mm 1000 mm |
25 mm 750 mm |
25 mm 600 mm |
|||||
Traverse Speeds, Standard Speeds | 10 Speeds - 50, 100, 150, 200, 225, 250, 300, 400, 450 & 500 mm / min. | 100 mm / min. | 25 mm / min | |||||
Optional Speeds | - | Additional speed of 50 mm/min | Alternative speed of 1.3 mm/min in place of 25 mm/min OR 10 Speeds - 50, 100, 150, 200, 225, 250, 300, 400, 450 & 500 mm / min. |
|||||
Additional speed of 500 mm/min | ||||||||
Alternative speed of 1.3 mm/min in place of 100 mm/min | ||||||||
10 Speeds - 50, 100, 150, 200, 225, 250, 300, 400, 450 & 500 mm/min. | ||||||||
Optional Variable speed drive stepless variation | 50 to 500 mm / min. | 10 to 100 mm / min. | 2.5 to 25 mm / min. | |||||
H.P (for standard speed) | 0.25 / 0.5 | 0.5 | 0.5 | |||||
Supply | 3-Phase, 415 Volts, 50Hz, AC | |||||||
Over travel safety | Provided with each model |
NOTE :
It is very important that while ordering the machine due care is taken in selecting proper capacity, traverse speeds, grip separation & grips. Following details should be furnished to ensure that testing of the materials is in conformity with the standards followed :
• Size, shape, materials of test specimens.
• Minimum & Maximum breaking load for test specimen (Not strength).
• The standard IS / BS / ASTM etc. to be followed.
• Straining rate required.
• Please send representative samples.
Dumb-Bell Specimen Cutting Accessories :
• Hand Operated Cutting Press, Size 150mm x 150mm
• Die overall length 50 mm as per IS:34 Part I & II, IS:5831
• Die overall length 75 mm as per IS:3400 Part, IS:434 Part I & II, IS:5831
• Die overall length 115 mm as per IS:3400 Part I, IS:2414, IS:2415 & IS:443
• Die overall length 152 mm as per IS:2076
MODEL | CAPACITY | DESCRIPTION | SPECIFICATION | APPLICATION |
TG 1/1 | 500 N | Eccentric Roller grip | 25 mm wide x 3 mm thick | For Dumbell shaped specimen of rubber and plastics suits TKG- 200 N & TKG -500 N |
TG 1/2 | 2 kN | Eccentric Roller grip | 25 mm wide x 5 mm thick | For Dumbell shaped specimen of rubber and plastics suits TKG -1000 N & TKG-2500 N |
TG 1/3 | 2 kN | Eccentric Roller grip | 35 mm wide x 6 mm thick | For Dumbell shaped specimen of rubber and plastics suits TKG- 1000 N & TKG -2500 N |
TG 1/4 | 5 kN | Eccentric Roller grip | 50 mm wide x 6 mm thick | For Dumbell shaped specimen of rubber and plastics suits TKG -1000 N & TKG-2500 N |
TG 1/5 | 5 kN | Eccentric Roller grip | 50 mm wide x 6 mm thick | For Dumbell shaped specimen of rubber and plastics suits TKG 5000 N & TKG 10 kN |
TG 2/1 | 2.5 kN | Cam type grip | 100 mm wide x 10 mm thick | For fabric strip suits TKG -2500 N |
TG 2/2 | 2.5 kN | Cam type grip | 100 mm wide x 10 mm thick | For fabric strip suits TKG -5000 N & TKG-10 kN |
G 3/1 | 200 N | Vice type grip | 25 mm wide x 4 mm thick | For thin flat samples of smaller strength like paper etc suits TKG -200 N |
TG 3/2 | 5 kN | Vice type grip | 500 mm wide x 25 mm thick | For flat materials like asbestos, leather, fabric, plywood suits TKG -2500 N |
TG 3/3 | 5 kN | Vice type grip | 50 mm wide x 25 mm thick | For flat materials like asbestos, leather, fabric, plywood suits TKG -5000 N & TKG-10 kN |
TG 3/4 | 2.5 kN | Vice type grip | 20 mm wide x 5 mm thick | For rigid wires upto 1 mm and flat strips suits TKG -2500 N |
TG 3/5 | 5 kN | Vice type grip | 100 mm wide x 6 mm thick | For fabric specimen suits TKG-2500 N |
TG 3/6 | 5 kN | Vice type grip | 100 mm wide x 6 mm thick | For fabric specimen suits TKG -5000 N & TKG-10 kN |
TG 3/7 | 5 kN | Vice type grip | 200 mm wide x 10 mm thick | For fabric specimen suits TKG -5000 N & TKG -10 kN |
TG 5/1 | 2.5 kN | Wedge type grip | 25 mm wide x 5 mm thick | For flat strips and wires suits TKG -2500 N |
TG 5/2 | 10 kN | Wedge type grip | Round 5 to 10 mm Flat 25 mm wide x 10 mm thick | For round specimen or flat specimen suits TKG -5000 N & TKG -10 kN |
TG 5/3 | 50 kN | Wedge type grip | Round 5 to 10 mm Flat 35 mm wide x 12 mm thick | For round specimen or flat specimen suits TKG -50 kN |
TG 5/4 | 2.5 kN | Wedge type grip | Flat 25 mm wide x 20 mm thick | For extra thick plywood specimen suits TKG -2500 N |
TG 5/5 | 50 kN | Wedge type grip | Flat 200 mm wide x 5 mm thick | For geo textile as per ASTM suits TKG -50 kN |
TG 5/6 | 50 kN | Wedge type grip | Flat 38 mm wide x 20 mm thick | For extra thick specimen like plywood suits TKG -25 & 50 kN |
TG 6/1 | 2.5 kN | O ring test fixture | - | For testing O rings suits TKG -2500 N |
TG 7/1 | 500 kN | Bollard type grip | 20 SWG or finer | For fine flexible wires suits TKG -200 N & TKG -500 N |
TG 7/2 | 1000 kN | Bollard type grip | Tape width 6 mm max. | For HDPE tape suits TKG -1000 N |
TG 7/3 | 2.5 kN | Bollard type grip | 20 SWG or finer | For fine flexible wires suits TKG -2500 N |
TG 7/4 | 2.5 kN | Bollard type grip | 20 SWG or finer | For fine flexible wires suits TKG -10 kN |
TG 7/5 | 2.5 kN | Bollard type grip | 20 SWG or finer | For fine flexible wires suits TKG -25 kN & TKG -50 kN |
TG 7/6 | 5 kN | Bollard type grip | Dia 4mm ropes. | For non metallic ropes / cords of nylon etc suits TKG -5000 N |
TG 8/1 | 10 kN | Vice cum wedge type grip | Upto 5mm dia, Flat 25mm wide x 5mm thick | For wires and flat strips suits TKG -10 kN |
TG 8/2 | 50 kN | Vice cum wedge type grip | Round 5 to 10mm, Flat 35mm widex10mm thk | For wires. Rods, and strips suits TKG -25 kN & TKG -50 kN |
TG 8/3 | 50 kN | Vice cum wedge type grip | Flat 35 mm wide, x 5 mm thick. | For harder wires and strips suits TKG -25 kN & TKG – 50 kN |
TG 8/4 | 50 kN | Vice cum wedge type grip | Flat 60 mm wide, x 10 mm thick. | For wider flat strips suits TKG -25 kN & TKG -50 kN |
TG 9/1 | 10 kN | Special Bollard grip | Dia 10 to 16 mm | For Nylon ropes suits TKG -10 kN |
TG 9/2 | 25 kN | Special Bollard grip | Dia 10 to 16 mm | For Nylon ropes suits TKG -25 kN & TKG -50 kN |
TG 9/3 | 50 kN | Special Bollard grip | 50 mm wide | For flat belts and strips suits TKG -25 kN & TKG -50 kN |
TG 9/4 | 50 kN | Special Bollard grip | 100 mm wide | For flat belts and strips suits TKG -25 kN & TKG -50 kN |
TG 10/1 | 10 kN | Grip for special | shaped specimen, As per IS 867 | For moulded plastic specimen as per IS 867 suits TKG -2500 N |
TG 10/2 | 10 kN | Grip for special | shaped specimen, As per IS 867 | For moulded plastic specimen as per IS 867 suits TKG -10 kN |
TG 10/3 | 10 kN | Grip for special | shaped specimen, As per IS 867 | For moulded plastic specimen as per IS 867 suits TKG -25 kN & TKG -50 kN |
TG 11/1 | 200 N | Compression cage | 85 (L) x 60 (D) x 140 (H) mm with dial gauge and scale | For compression test on flexible / soft materials suits TKG- 200 N |
TG 11/2 | 200 N | Compression cage | 85 (L) x 60 (D) x 140 (H) mm without dial gauge and scale | For compression test on flexible / soft materials suits TKG -200 N |
TG 11/3 | 2.5 kN | Compression cage | 100 (L) x 65 (D) x 200 (H) mm | For compression test on flexible/soft materials suits TKG -2500 N |
TG 11/4 | 10 kN | Compression cage | 150 (L) x 80 (D) x 200 (H) mm | For compression test on flexible / soft materials suits TKG-25 & 50kN |
TG 11/5 | 50 kN | Compression cage | 150 (L) x 150 (D) x 200 (H) mm | For compression test on flexible / soft materials suits TKG -25 & 50kN |
TG 11/6 | 10 kN | Compression cage with dial gauge scale and ball edge. | 80 (L) x 60 (D) x 60 (H) mm | For compression test on flexible / soft materials suits TKG -25 & 50kN |
TG 11/7 | 50 kN | Compression cage with fixtures | As per IS 10570 / 83 | For cold crushing strength suits TKG- 25 kN & 50kN |
TG 11/8 | 10 kN | Compression cage with dial gauge & ball cage | 50 x 50 x 50 mm specimen | For compression test on plywood etc suits TKG -10 kN |
TG 12/1 | 2.5 kN | Bend / cross breaking test fixture | 50 wide x 25 thk x 150 mm span 5 mm roller radius. | For conducting cross breaking test or bend test suits TKG -2500 N |
TG 12/2 | 10 kN | Bend / cross breaking test fixture | 25 wide x 35 thk x 150 to 300 mm span. | For conducting cross breaking test or bend test suits TKG -10 kN |
TG 12/3 | 25 kN | Bend / cross breaking test fixture | 25 wide x 35 thk x 150 to 400 mm long span. | For conducting cross breaking test or bend test suits TKG -25 kN & 50 kN |
TG 12/4 | 25 kN | Bend / cross breaking test fixture | 60 wide x 10 thk x 90 mm span roller dia 30 mm | For a specimen 60 wide x 10 thk x 120 mm long suits TKG -25 kN & TKG 50 kN |
TG 12/5 | 25 kN | MOR test fixture with compression cage | 40 x 40 mm specimen x 100 span | For conducting on refractory castables as per IS 10570 / 83 suits TKG 25- kN & 50 kN |
TG 12/6 | 1 kN | Cross breaking test fixture | 50 wide x 100 mm span Roller radius 3.2 mm | For testing brake shoe material as per IS 2742 part 3 suits TKG- 2500 N |
TG 12/7 | 2500 N | MOR test fixture | 500 mm span x width 100 mm | For plywood. |
TG 12/8 | 10 kN | MOR test Fixture with dial gauge | 600 mm span x 80 mm width support radius 12, 18, 27, 37.5 mm | For plywood. |
TG 12/9 | 5 kN |
Bend test Fixture | 600 mm span x width 50 mm | For two point loading as per IS 1734 part II suits TKG-25 & 50 kN |
TG12/10 | 10 kN | Cross breaking test fixture | Span 500 mm x width 100 mm Roller dia 15 | For MOR test as per IS 1658 / 77. |
TG 13/1 | - | Hand operated Press | 150 mm wide | For cutting Dumbell shaped rubber specimen with respective dies suits TKG -2500 N |
TG 14/1 | 25 kN | Shear strength attachment | 20 mm width x 10 mm thk | For testing internal shear strength as per IS 2742-92 Part 5 suits TKG -25 & 50 kN |
TG 14/2 | 10 kN | Glue shear test attachment. | 30 mm wide x 25 mm thk. | For glue shear testing of plywood suits TKG -10 kN |
TG 14/3 | 10 kN | Shear test fixture | Dia 12.7 mm | For shear testing of laminates as per IS 1998 suits TKG -25 & 50 kN |
TG 15/1 | 10 kN | Grip for plywood screw & nail withdrawl test | 75 mm wide specimen | For testing plywoods as per IS 2380 part XIV suits TKG -10 kN |
TG 15/2 | 10 kN | Grip for plywood tensile strength perpendicular to surface | 50 x 50 mm specimen | For plywood as per IS 2380 Part V suits TKG -10 kN |
TG 15/3 | 25 kN | Grip for plywood screw & nail with drawl test | 75 mm wide specimen | For testing plywood as per IS 2380 Part XIV suits TKG-25 & 50 kN |
TG 15/4 | 25 kN | Grip for plywood tensile strength perpendicular to surface | 50 x 50 mm specimen. | For plywood as per IS 2380 Part V suits TKG - 25 & 50 kN |
TG 21 | 10 kN | Special grip for fanhook | - | For testing fan hook suits TKG -25 & 50 kN |
TG 22/1 | 1 kN | Grip for security of attachment of bottom stops of Zip | - | For testing of Zip as per Annexure D of IS: 3148-1991 Fig.7 suits TKG -2500 N |
TG 22/2 | 1 kN | Grip for security of attachment for top steps & puller | - | For testing Zip as per Annexure H of IS: 3148-1991 (Fig 11 and Fig. 8) |
