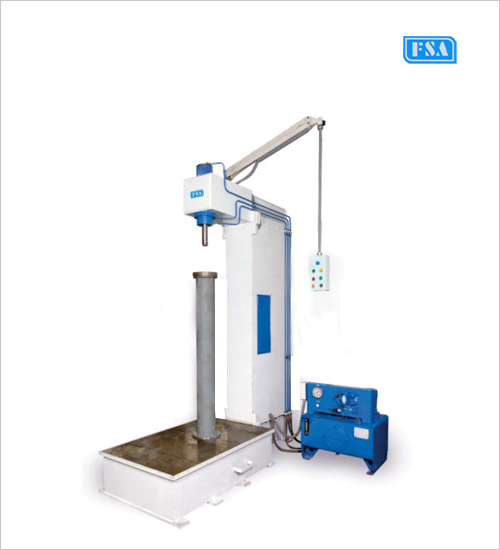

Wom Typing Brinell Hardness Testing Machines


Technical Specifications

SPECIFICATION
Test Loads 750 & 3000 kgf
Test ball 10 mm / 5 mm
Stroke of loading piston 300 mm
Maximum speed of loading piston
Downwards (loading), Upwards (unloading)
-
No. of piston extension 1 No
Length of piston extension 300 mm
Machine throat 400 mm
Max. test height of the sample 900 mm
(This will operate from 300 height to 600 mm height with extension and from 600 to 900 mm height withoutextension and job less than 300 mm height to be tested on a table to be provided by the user).
Size of the table
1200 mm length (800 mm at the left side of the operator and 400 mm at the right side of the operator x 600 mm width
Load capacity of the table
1500 kg
Max. system pressure
70 bar
Accuracy of load measurement
┬▒ 1% as per IS 2281-83
Measurement with portable microscope of
25X magnification
Motor
1 H.P.
Power supply
3 Phase, 440 Volts, 50 Cy./sec A.C
Machine size (L x W x H)
Main Unit 1600 x 800 x 1765 mm approx
Power Pack (L x W x H)
580 x 760 x 740 mm approx
Weight approx in Kg
Machine 900 kg, Power pack 200 kg approx.
