Vertical Type DSP Based Dynamic Balancing Machines
( Model : FVBM )


• Vertical machines bear kind of hard to achieve a balance between the aircraft and one of the rotors like clutch
  plates, fan blades, fly wheels, magnetic, and grinding wheels, compressors, pulleys, etc.
• The microprocessor dashboard with Motor Claims Facility.
• Achieve a minimum of unbalance up transformation micron 0.5 in CG
• Various models - Suitable for rotors from 0.3 kg to 300 kg.
• It can also computerized versions / e with the printer and the facility in accordance with the requirements of the
  customers will be supplied.

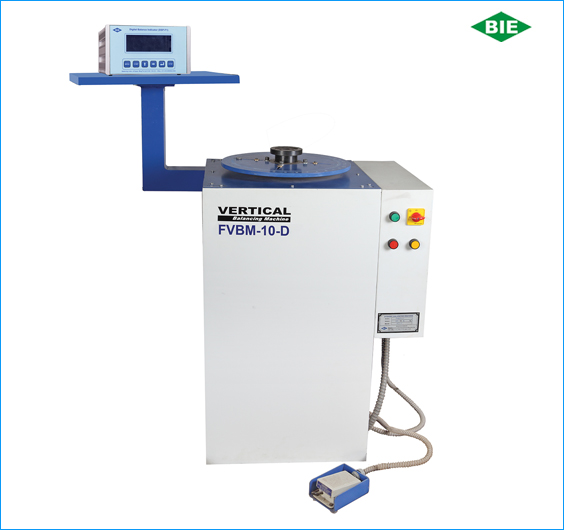

Vertical Type Dynamic Balancing Machines


Technical Specification for Bearing Single Vertical Solid Model Plane Dynamic Balancing Machine : FVBM-DSP
TYPES UNIT FVBM-3 (DSP)
FVBM-5 (DSP) FVBM-10 (DSP) FVBM-30 (DSP) FVBM-50 (DSP) FVBM-100 (DSP) FVBM-300 (DSP)
Weight of the rotor kg. 0.3 - 3 0.5 - 5 0.5 - 10 1 - 30 1.5 - 50 3 - 100 10 - 300
Maximum Dia of the rotor mm
300
400
400
500
500
600
1000
Balancing speed (n) RPM 1000 1000 1000 750 600 500 350
Engine power Horse 0.33 0.33 0.75 1.5 1.5 3 5
Acceleration capability in GD2n2 kgm2n2 0.29 x 106 0.29 x 106 0.37 x 106 0.66 x 106 0.66 x 106 2.28 x 106 10.6 x 106
Min. Measuring the mass unbalance GM 0.01 0.01 0.01 0.1 0.1 0.1 0.1
Maximum Measuring the mass unbalance Kg 0.2 0.2 0.2 1 1 2 2
Minimum achieve unbalance (For maximum weight of the rotor) Microns or GMM / kg 0.5 0.5 0.5 0.5 0.5
0.5
0.5
Machine is compatible with: 13277-1992

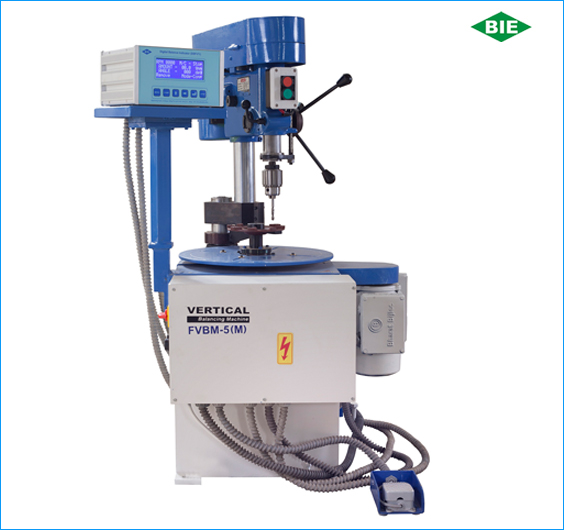

5 kg capacity DSP Based Vertical Type Dynamic Balancing Machine, Model : FVBM-5 (DSP) With Drill Head Attachment

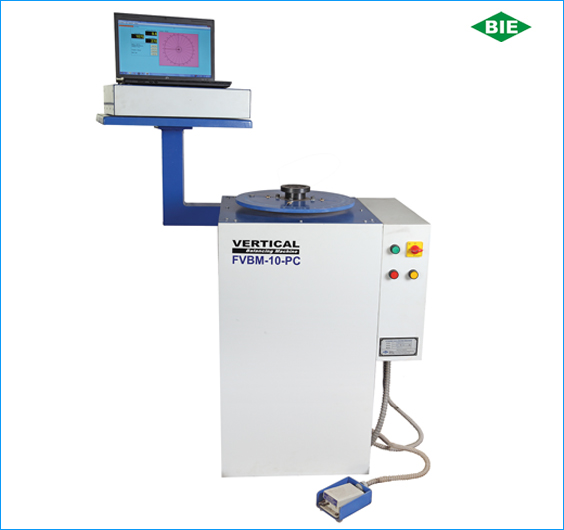

10 kg capacity Computerized Vertical Type Dynamic Balancing Machine, Model : FVBM-10-PC
