End Quench Test Apparatus ( Model : MEQ-25 )

We are Manufacturer, Supplier, Exporter of End Quench Test Apparatus and our set up is situated in Sangli, Maharashtra, India.

Features
• This apparatus is useful for determining the hardenability of steels by End Quench Test.
• The test consists of heating a standard size specimen to a given temperature for a specific period of time, followed   by a water quenching of one end under specified conditions and measuring the hardness at various points from   quenched end along the length of test piece.
• This apparatus conforms to IS : 3848 – 1981 and ASTM-A255.

Working Principle
• After heating, the test specimen is kept on the specimen support, where it is automatically centered with respect to   water jet.
• The quick action valve starts impinging the water jet on the specimen end instantly.
• The elaborate arrangement of pump, tank, pipe etc, enables to obtain desired correct water head for the nozzle.
• The electrical controls and safety devices for pump and motor are provided and the entire apparatus is totally   enclosed.

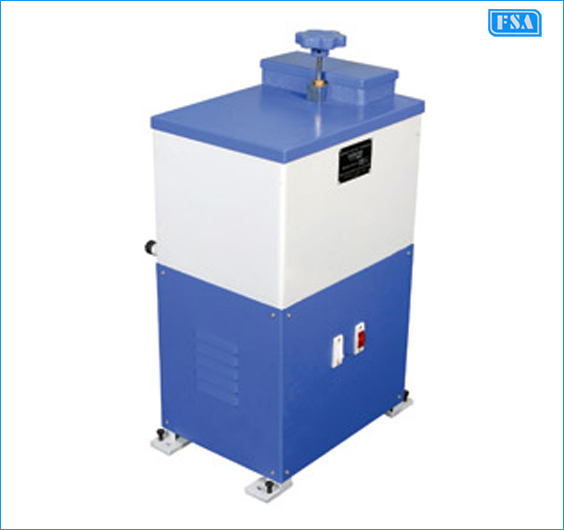

End Quench Test Apparatus


Technical Specification

 Total length of test piece (mm)  100 ± 0.5
 Dia of test piece (mm)
 25 + 0.5
 - 0.0
 Inside dia of vertical water supply pipe (mm)  12.5 ± 0.5
 Height of the free water jet (without test piece in position) (mm)  65 ± 10
 Distance from Tip of nozzle to the bottom of test piece (mm)
 12.5 ± 0.5
 Power supply  1 Ph, 230V, 50 Hz AC
 Overall dimension (approx) (mm)  375 (L) x 285 (B) x 650 (H)
 Net weight (approx) (Kg)
 35
