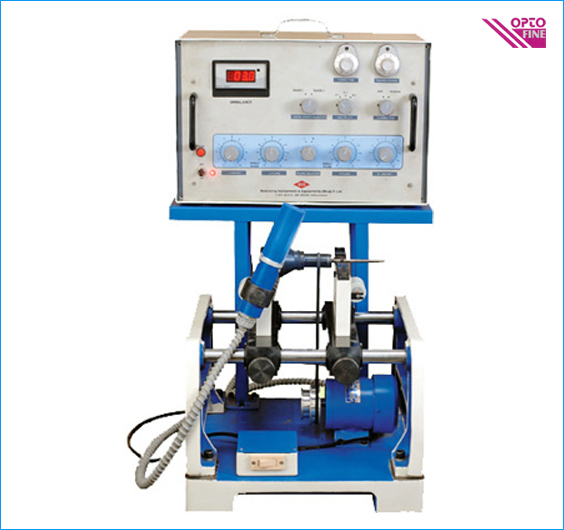

Strobodynamic Balancing Machines
( Model : SSBM / FSBM )

• Small & compact machine with high accuracy for balancing of small rotors like textile spindles, electric power tool   armature, etc.
• Special electro dynamic pickups are used for sensing minute vibration due to imbalance in the rotor.
• Machine is provided with electronic measuring control panel with digital panel meter for amount indication & xenon   flash tube with brilliam white light for locating position of unbalance.
• Rotor loading and unloading is very easy, as a special quality stretchable rubber belt is used for driving the rotor   under trial.
• Machine is very sensitive & accuracies of the order of 0.2 micron.
• Machine does not require any concrete foundation. It can be operated by placing on a plain surface.
• Machine requires single phase supply of 220 volts, A.C., 50 Hz. As such machine can be conveniently located where   single phase supply is available.
• Operation of the machine is very simple and does not requires any skilled operator, once proper training for   operating the machine is given.
• Suitable for rotors from 0.1 kg to 3 kg.
• Balancing speed range is 800 to 3000 rpm




Strobodynamic Balancing Machines


Technical Specification
 MODEL  UNIT  SSBM-1
 SSBM-3  FSBM-10  FSBM-30  FSBM-50
 FSBM-100  FSBM-300
 Weight of Rotor  kg.  0.03 - 1  0.1 - 3  0.3 - 30  0.3 - 30  0.5 - 50
 1 - 100  3 - 300
 Max. Dia of Rotor  mm  100  100  250
 500  500
 800  800
 Max. Distance between Bearing  mm  250  250  700  700  1200
 1500  1500
 Journal Dia. Range on Std. Roller Carriage  mm
 5 - 20  5 - 20  5 - 50  5 - 50  5 - 50
 20 - 100  20 - 100
 Balancing Speed (n)  rpm  800 - 3000  800 - 3000  800 - 3000  800 - 3000  800 - 3000
 800 - 3000  800 - 3000
 Power of Drive Motor  h.p.  0.05  0.05  0.33  0.75  0.75  1.5  3
 Acceleration Capability in GD2n2  kgm2n2  -  -
 0.29 x 106  0.37 x 106  0.37 x 106
 0.88 x 106  3.90 x 106
 Minimum Achievable unbalance  gmm/kg  0.2 - 2  0.2 - 2  0.2 - 2  0.2 - 2  0.2 - 2
 0.2 - 2  0.2 - 2
 Machine Confirms to IS : 13277-1992
